Utimaco Connector Integration Guide
Prerequisites
To get the PKCS#11 Engine working smoothly with your Utimaco HSM and Encryption Consulting’s CodeSign Secure, you’ll need a few key things. Here are the steps to install the resources that are essential for setting up the Windows environment:
-
Utimaco Security Server
Utimaco SecurityServer provides cryptographic libraries, tools, and interfaces (e.g., PKCS#11, CSP, and JCE) to manage keys and perform cryptographic operations securely. The software includes the CryptoServer SDK, administrative tools, and simulators, facilitating seamless HSM integration for enhanced security and regulatory compliance.
Installation Steps:
Step 1: Download the ProviderDownload the provider (e.g., SecurityServerEvaluation-V6.1.1 for Windows) from the Utimaco customer portal.
Step 2: Install the Provider- Extract the downloaded package, run the MSI installer, and follow the prompts to set up the Utimaco Security Server on your system.
-
It will install the required tools to the default location (C:\Program Files\Utimaco), unless otherwise specified while installing, and will also create shortcuts for the following tools on the current user’s Desktop for easier access:

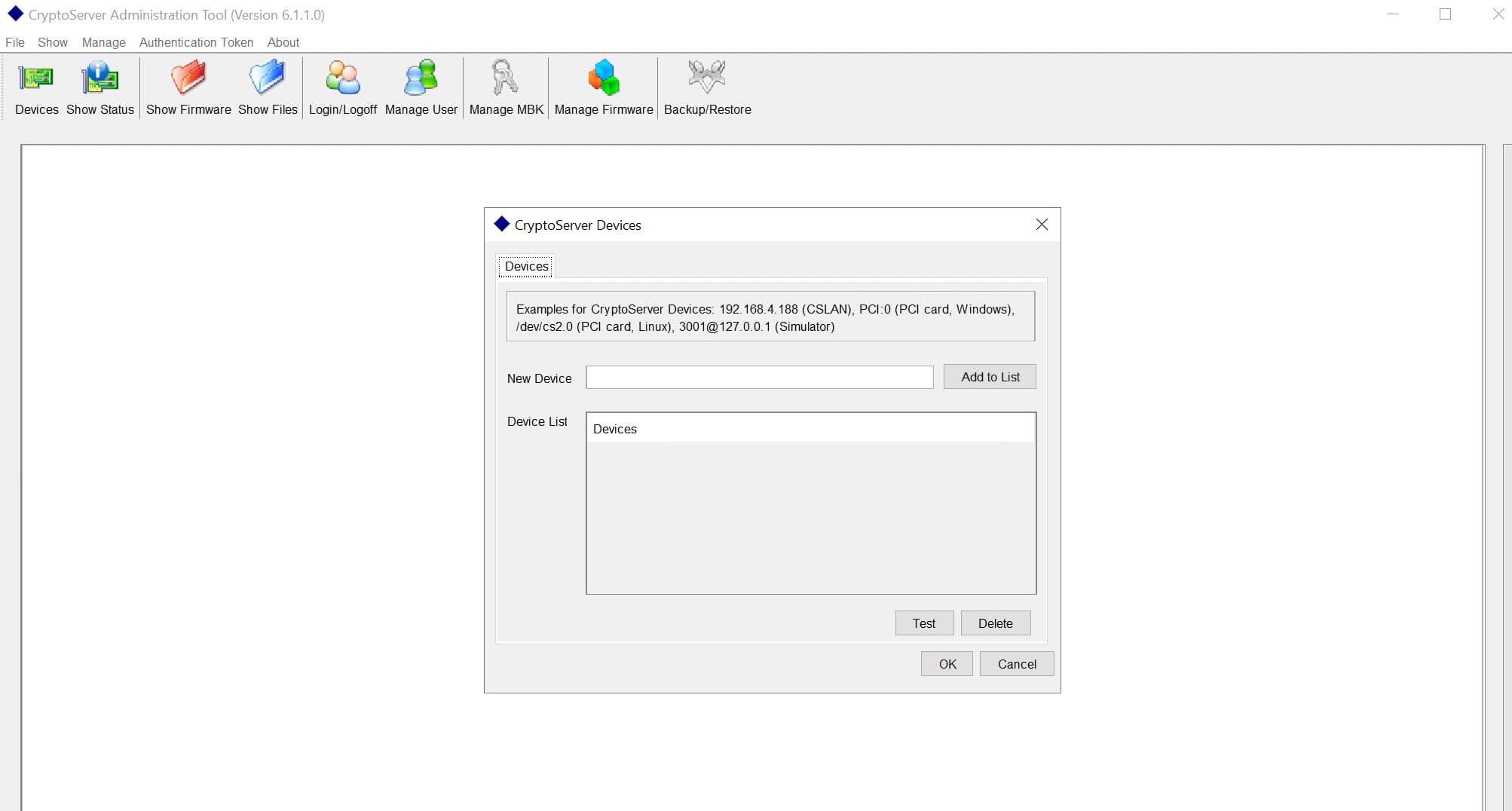

- CryptoServer Administration
- PKCS#11 CryptoServer Administration
- CryptoServer Simulator
- Along with this, it will also modify the Environment Variables with the Utimaco SecurityServer’s selected locations and configuration files.
-
OpenSSL 3.x
OpenSSL 3.x is required for cryptographic operations and to leverage the PKCS#11 provider with the Utimaco HSM.
Installation Steps:
Step 1: Download OpenSSLDownload the latest 64-bit OpenSSL 3.x installer for Windows using this link.
Step 2: Install OpenSSL- Run the downloaded installer with administrative privileges.
- Choose the default installation directory (C:\Program Files\OpenSSL-Win64) unless you have specific requirements.
Add the OpenSSL binary directory to the system PATH:
- C:\Program Files\OpenSSL-Win64\bin
Open a new Command Prompt and run the following command to test openssl installation.
openssl version
-
Java Runtime Environment
Utimaco SecurityServer also requires a Java Runtime Environment (Tested version Java 15). Refer to the below matrix to check the Java compatible version:
Java Runtime Environment Version Oracle Java 8,11,15 OpenJDK 8,11,15 Installation Steps:
Step 1: Download Java 15Download the compatible Java executable from here for your Windows system.
Step 2: Install Java 15Run the downloaded executable and follow the prompts to set up Java 15.
Step 3: VerificationOpen a new Command Prompt and run the following command to test java installation.
java -version
-
Microsoft Visual Studio Build Tools
Microsoft Visual Studio Build Tools are required to compile the OpenSC PKCS#11 Wrapper Library (libp11) on Windows
Installation Steps:
Step 1: Download Visual Studio Build ToolsDownload the Microsoft Build Tools for Visual Studio 2022 using this link.
Step 2: Install Build ToolsRun the installer (vs_buildtools.exe) with administrative privileges.
Step 3: Verify InstallationOpen the x64 Native Tools Command Prompt from the Start menu and run
nmake /?
This should display the help for the nmake utility, confirming the build tools are installed.
NOTE: “x64 Native Tools Command Prompt” should be present inside C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Visual Studio 2022\Visual Studio Tools\VC -
OpenSC PKCS#11 Wrapper Library
The OpenSC PKCS#11 Wrapper Library (libp11) provides the PKCS#11 engine plugin (pkcs11.dll) for OpenSSL to interact with the HSM.
Installation Steps:
Step 1: Download the Source Code- Clone the OpenSC/libp11 repository from GitHub or download it as a ZIP file.
-
Clone using Git (if installed):
git clone https://github.com/OpenSC/libp11.git C:\Users\<Username>\source\repos\libp11
- Or download the ZIP from this link and extract it to C:\Users\<Username>\source\repos\libp11.
- Open the “x64 Native Tools Command Prompt”.
- Navigate to the libp11 directory, i.e., cd “C:\Users\<Username>\source\repos\libp11”
-
Run the nmake command to build the library
nmake /f Makefile.mak OPENSSL_DIR="C:\Program Files\OpenSSL-Win64" BUILD_FOR=WIN64
NOTE: Ensure OPENSSL_DIR points to your OpenSSL installation directory.
Check for the pkcs11.dll file in the libp11\src folder. This is the OpenSC PKCS#11 Engine Plugin.
Step 4: Copy the SRC folderCopy the src folder that you just created to your OpenSSL bin directory, i.e., C:\Program Files\OpenSSL-Win64\bin
Configuration
After installing the prerequisites, you need to configure the Utimaco SecuritySever, OpenSSL, and the OpenSC PKCS#11 Wrapper Library to enable communication with your Utimaco HSM.
-
Configure the Utimaco SecurityServer
Configuring Utimaco SecurityServer requires setting up environment variables, updating configuration files (e.g., PKCS#11 settings), to manage HSM access and operations securely.
Steps:

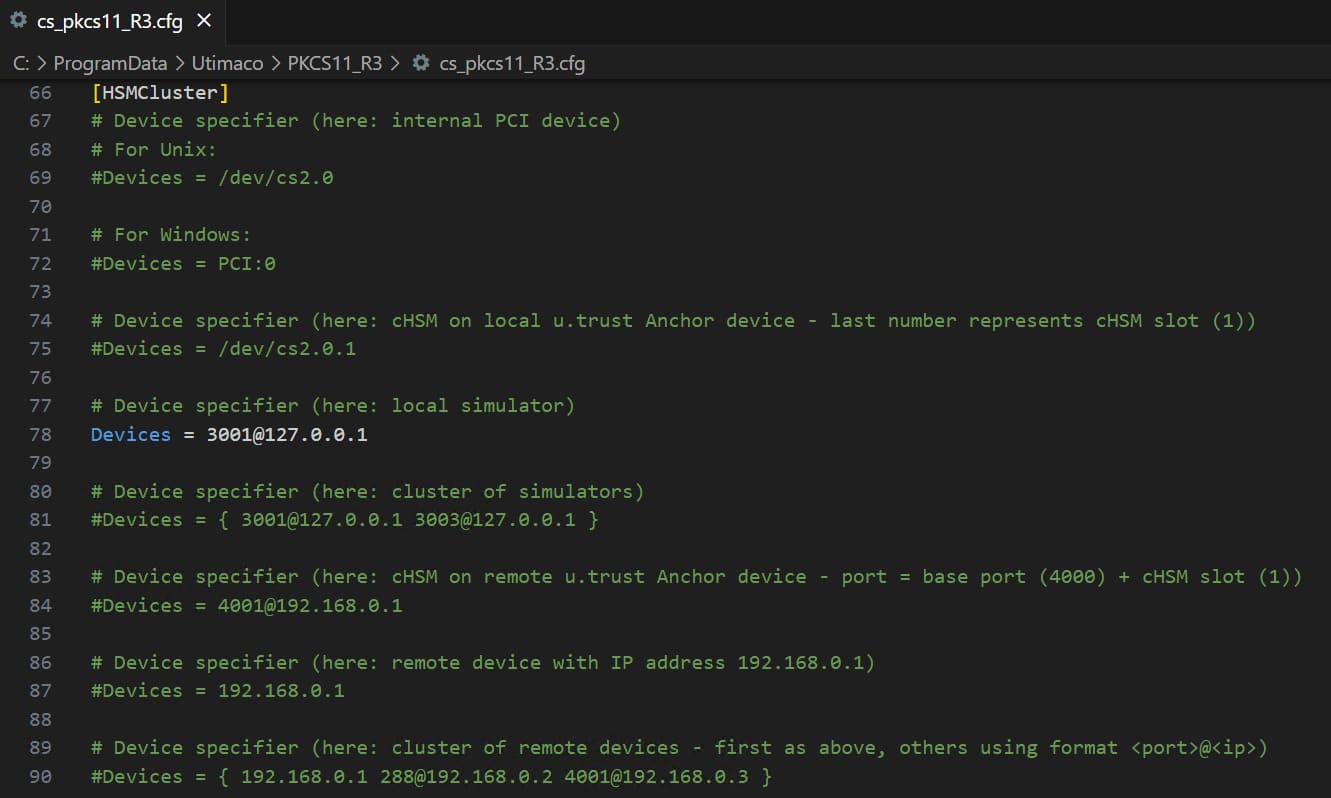

Step 1: Locate the Configuration File (cs_pkcs11_R3.cfg)Navigate to the Utimaco PKCS#11 Provider installation directory, typically: C:\ProgramData\Utimaco\PKCS11_R3
Step 2: Update the IP address of the HSMUnder the [HSMCluster] section, update the IP address of your Utimaco HSM. Remember to uncomment (remove the hash symbol) the line (e.g., [email protected]) where you have added the IP.
-
Create User Roles for a Slot
To generate keys and certificates using Utimaco SecurityServer, you will need to create and define user roles—Admin, Security Officer (SO), and Cryptographic User.
Steps:

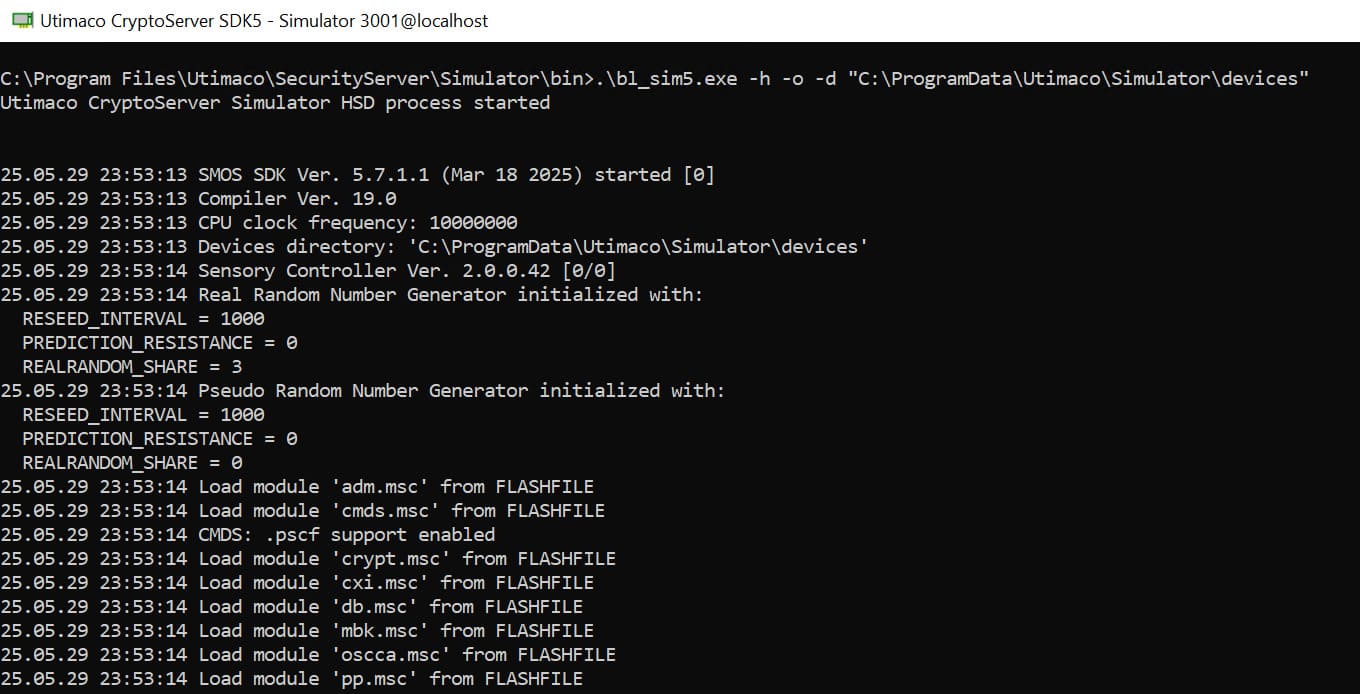

Step 1: Start the CryptoServer Simulator-
Start the CryptoServer Simulator, provided on the Desktop, to initialize the required settings.

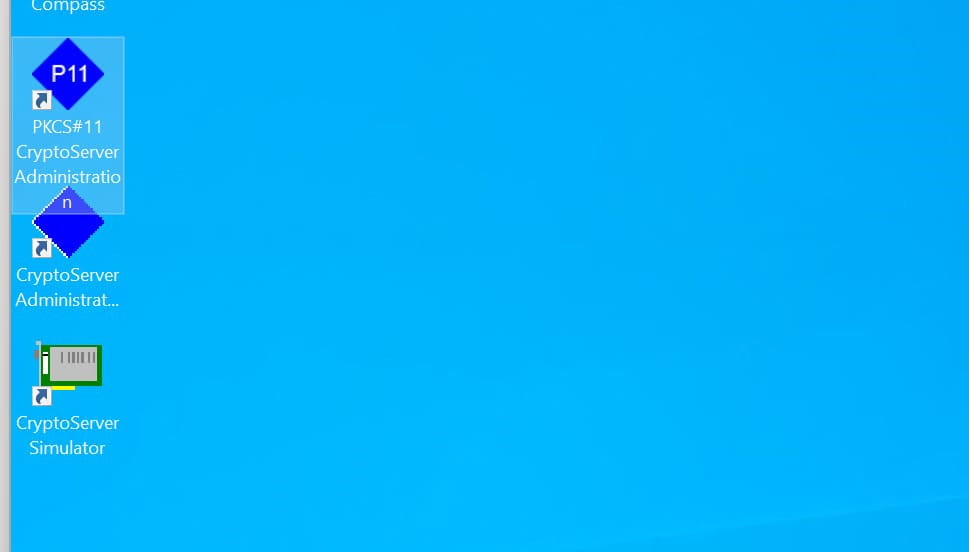

Open the PKCS#11 CryptoServer application, typically provided on the user’s Desktop

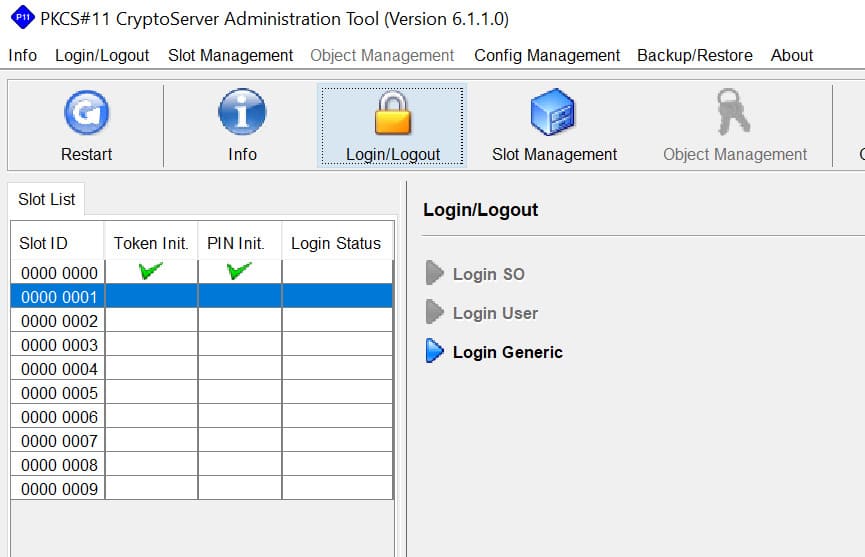

From the left side table, click on the required slot number. Here, we have selected slot number 1
-

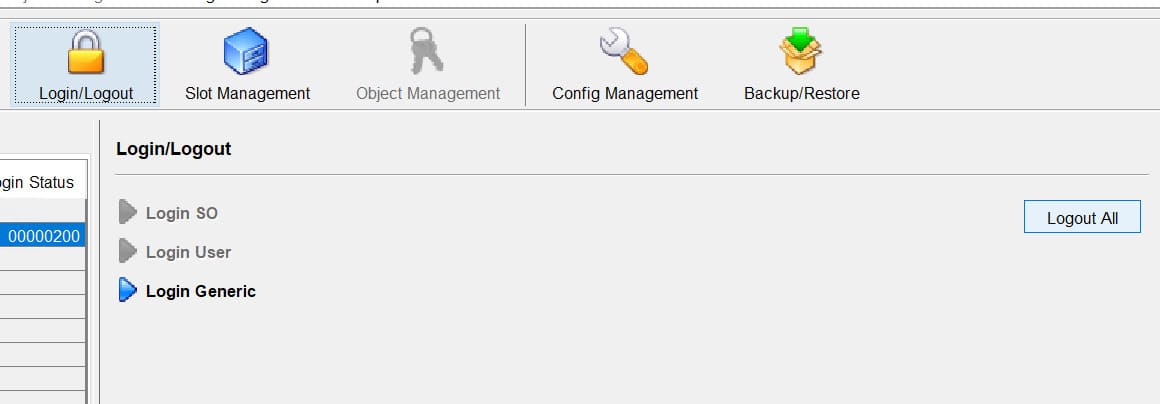

Go to the Login/Logout section from the top bar and select the “Login Generic” option.
-

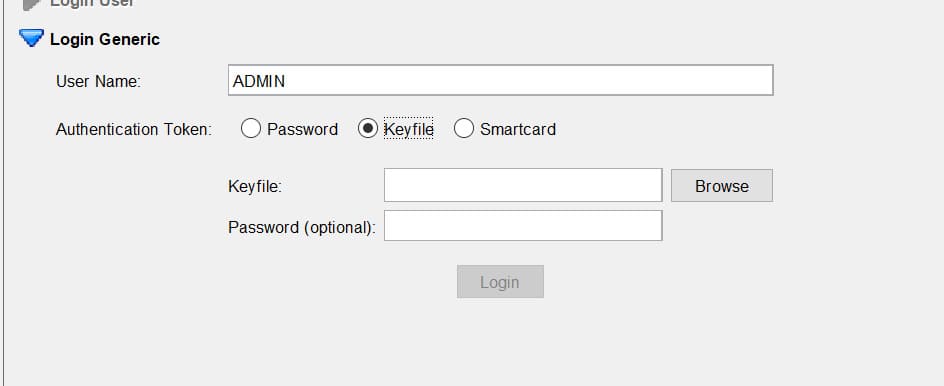

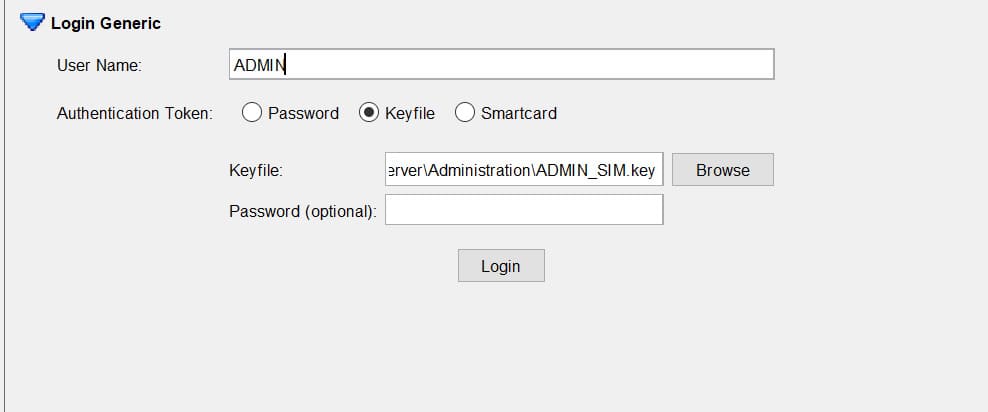

Enter “ADMIN” as the username and select “Keyfile” option for the password.
-
Browse the Keyfile and provide the password file. When running the simulator, select the “ADMIN_SIM.key” file; otherwise, use the “ADMIN_EC.key”. These key files are usually present in the “C:\Program Files\Utimaco\SecurityServer\Administration” directory.
-
Click Login to log in as the ADMIN user. It will show you a lock in the Login Status in the left table for that slot.
-

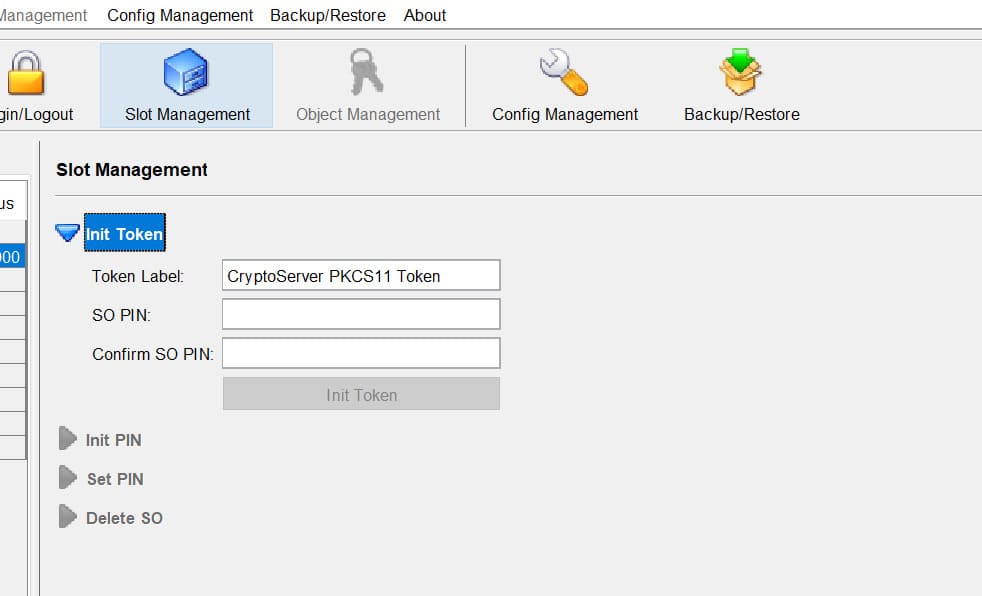

Open the Slot Management section from the top bar and select the “Init Token” option.
-

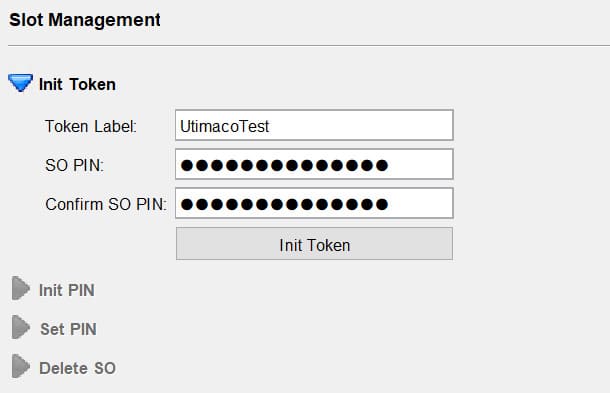

Enter the required token name for this slot and provide a temporary PIN for the Security Officer role (this PIN will be changed in the later steps)
-

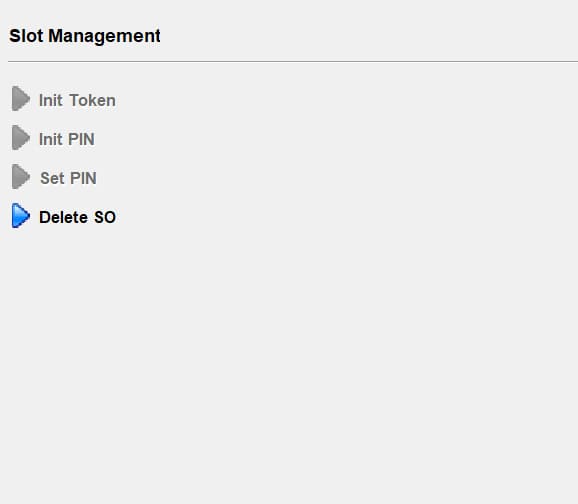

Click on the “Init Token” button to finalize the token. It will now disable the “Init Token” option for this slot and enable the “Delete SO” option.
-
Now, go to the Login/Logout section and click on the “Logout All” option to log out all the active user roles.
-

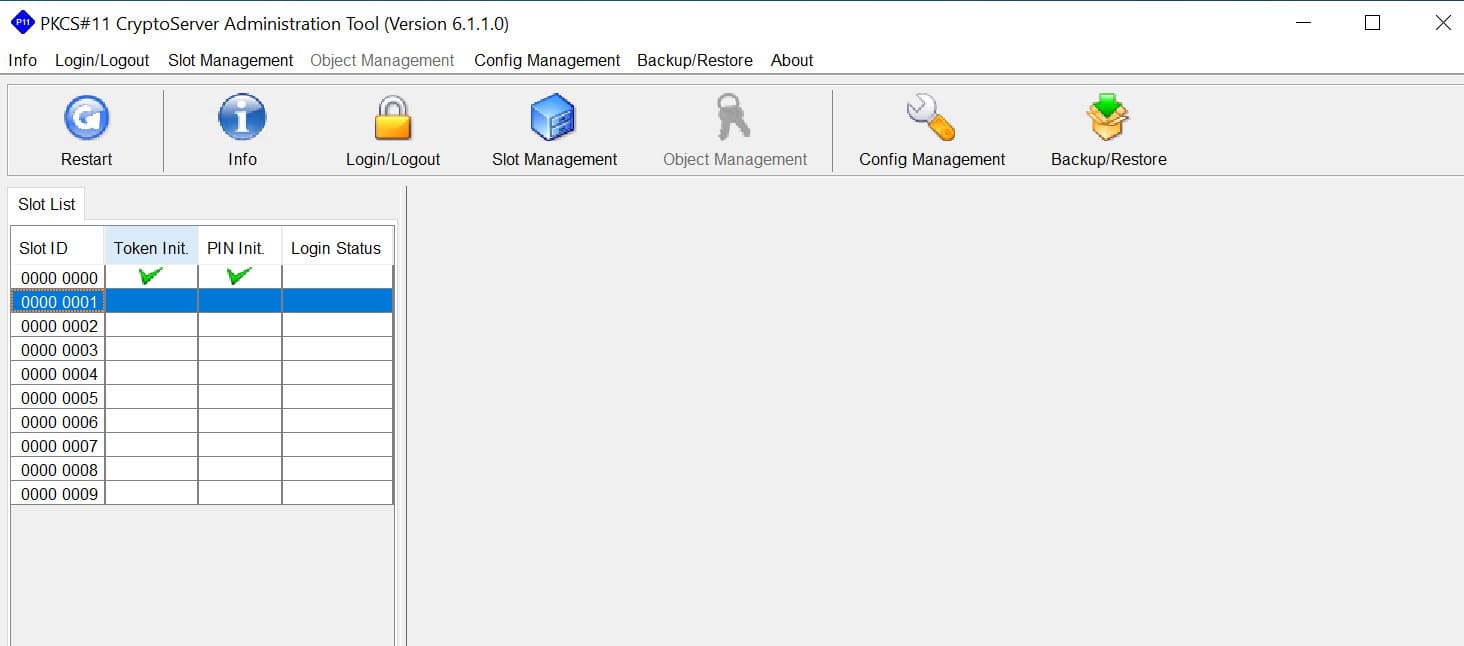

It will show a green check mark in the left table under Token Init for this slot.
-

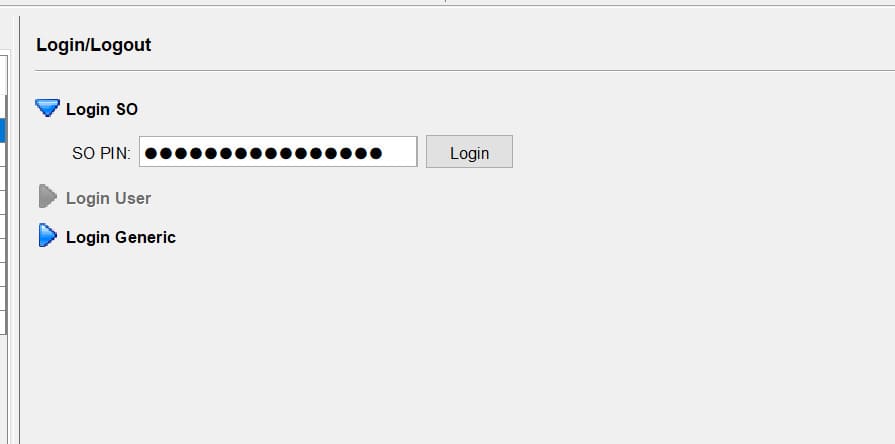

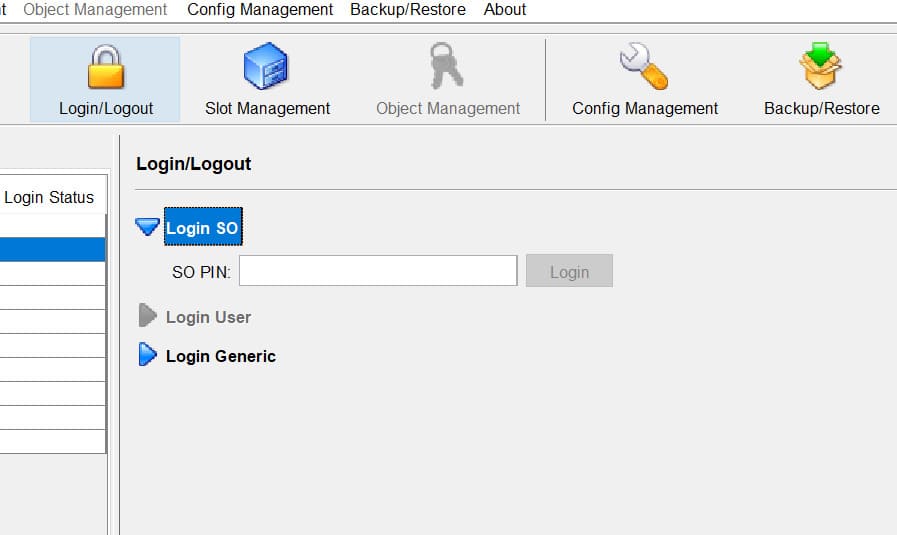

Go to the “Login/Logout” section and select the “Login SO” option.
-
Enter the temporary SO PIN that you had set up in the earlier step for the Security Officer role and click “Login” button. It will show you a lock symbol in the left table under “Login Status”.
-

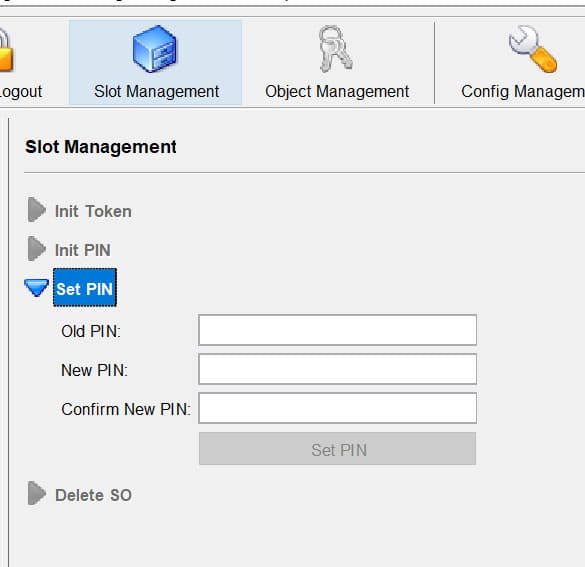

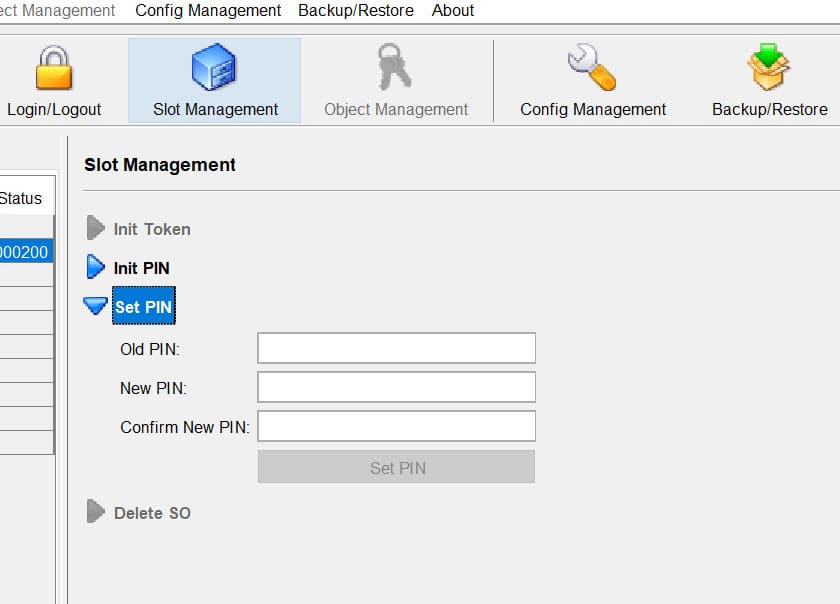

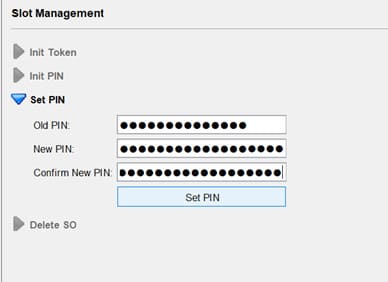

Now, go to the Slot Management section from the top bar, and set a new PIN for the Security Officer role by selecting “Set PIN” option.
-
Set a new SO PIN for this slot’s Security Officer.
-
It will log you out from the current session as the SO, which you can see from the “Login/Logout” section or the left side table’s “Login Status” column.
-
Log in again as the SO with the new SO PIN by selecting “Login SO” in the “Login/Logout” section.
-
It will show you a lock in the left side table on successful log in.
-

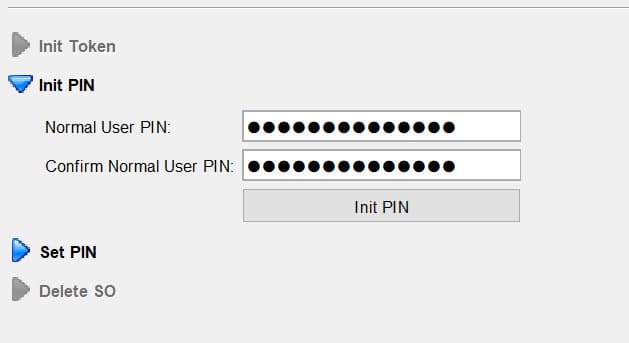

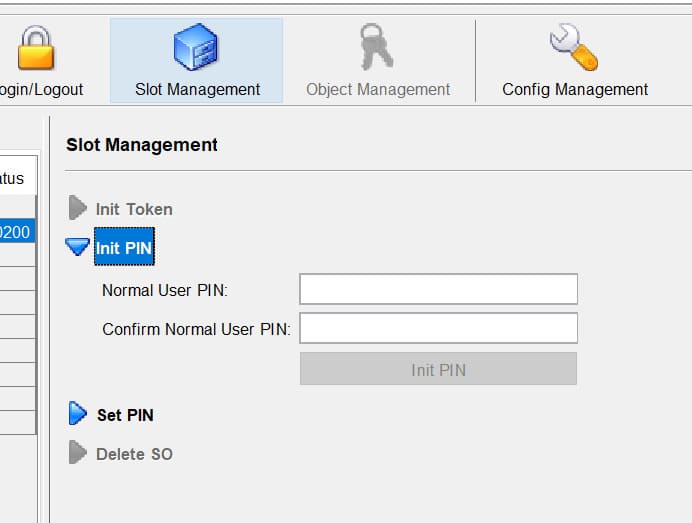

Go to the “Slot Management” section and select the “Init PIN” option.
-
Enter a temporary PIN for the cryptographic user for this slot and click on “Init PIN” button.
-

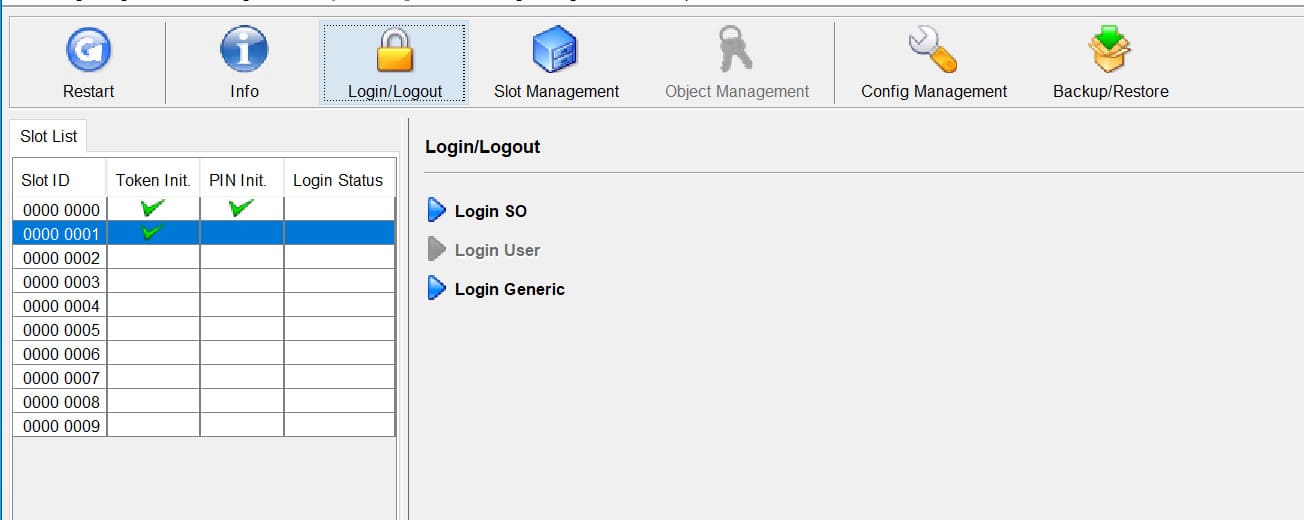

Now log out all active sessions from the “Login/Logout” section.
-

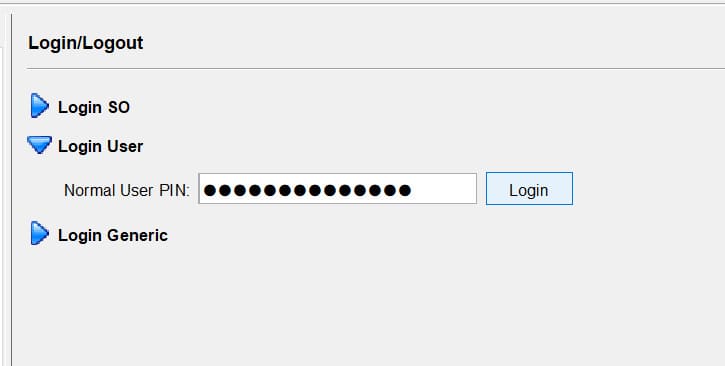

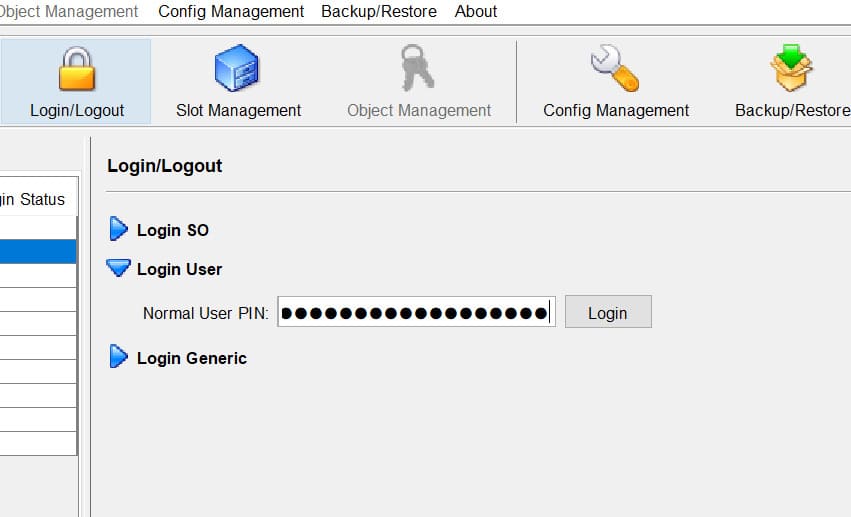

Now log in as the Cryptographic User using the temporary PIN by selecting the “Login User” option in the “Login/Logout” section.
-

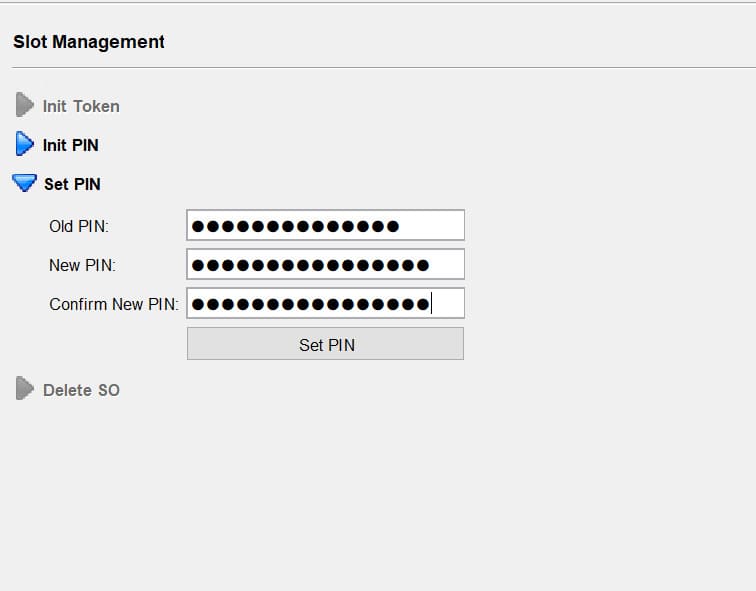

Go to the “Slot Management” section and set up a new PIN for the cryptographic user using the “Set PIN” option.
-
Update the PIN for the cryptographic user in this slot
-
This will log you out of your current session. Log in again as the user from the “Login/Logout” section.
-
You are ready with all the required roles for this slot. You will need to be logged in as the Cryptographic User to perform any object management, such as key or certificate generation.
-
-
Configure OpenSSL to Use the PKCS#11 Engine
OpenSSL must be configured to load the Utimaco PKCS#11 Provider (cs_pkcs11_R3.dll) and the OpenSC PKCS#11 Engine Plugin (pkcs11.dll) to perform cryptographic operations with the HSM.
Steps:
Step 1: Locate the OpenSSL Configuration File (openssl.cfg)Find the OpenSSL configuration file: C:\Program Files\Common Files\SSL
Step 2: Edit the OpenSSL Configuration- Open openssl.cfg in a text editor with administrative privileges.
-
Add the following at the top of the file to enable dynamic engine loading:
openssl_conf = openssl_init
-
Add the following at the end of the file to configure the PKCS#11 engine:
[openssl_init] engines = engine_section [engine_section] pkcs11 = pkcs11_section [pkcs11_section] engine_id = pkcs11 dynamic_path = C:\\Program Files\\OpenSSL-Win64\\src\\pkcs11.dll MODULE_PATH = C:\\Program Files\\Utimaco\\SecurityServer\\Lib\\cs_pkcs11_R3.dll init = 0
dynamic_path: Path to the OpenSC PKCS#11 Engine Plugin (pkcs11.dll) compiled in the prerequisites.
MODULE_PATH: Path to the Utimaco SecurityServer PKCS#11 Provider DLL.
Step 3: Verify OpenSSL Configuration and Connection
-
Open a Command Prompt and run:
openssl engine pkcs11 -t
-
Expected output confirms the PKCS#11 engine is available:
(pkcs11) PKCS#11 engine
[ available ]
-
Configure CodeSign Secure
CodeSign Secure requires configuration to connect to the Utimaco SecurityServer HSM for secure code signing operations. The app-config.properties file specifies the various details needed to successfully connect to Utimaco HSM.
Steps:
Step 1: Locate the app-config.properties FileNavigate to the CertificateManagement folder inside the CodeSign Secure installation directory and locate the app-config.properties file, typically: C:\CodeSignSecure\src\CertificateManagement
Step 2: Update the HSM Details Fields- Open app-config.properties in a text editor with administrative privileges.
-
Update the following fields, replacing placeholders with your HSM connection details:
HSM_LIB_PATH_UTIMACO= <Path of cs_pkcs11_R3.dll file>
HSM_PIN_UTIMACO= <Login PIN for the Cryptographic User for a desired slot>
HSM_TOKEN_UTIMACO= <Slot Token Name>
HSM_SLOT_UTIMACO= <HSM Partition Slot Number>
- Save the file with the modified details.
