    Knowing the New FIPS 140-3

    Knowing The New FIPS 140-3 - Blog Post
    29 Jan 2021

    Transitioning to FIPS 140-3 – Timeline and Changes

    /

    Read time: 7 minutes

    FIPS 140 (“Federal Information Processing Standard”) is a series of security standards published by the U.S. government that specify security requirements for the evaluation of cryptographic modules. FIPS 140-3 is the newest version; this iteration of FIPS has necessary changes related to the design, implementation, and operation of a cryptographic module.

    What is FIPS 140-3?

    FIPS 140-3 is a standard developed by the National Institute of Standards and Technology (NIST) and Communications Security Establishment Canada (CSEC) to define the requirements to be satisfied by a cryptographic module to protect sensitive information.
    FIPS 140-3 supersedes FIPS 140-2 and outlines updated federal security requirements for cryptographic modules. The new standards align with ISO/IEC 19790:2012(E) and include modifications of the Annexes that are allowed by the Cryptographic Module Validation Program (CMVP), as a validation authority.
    FIPS 140-3 became effective September 22, 2019, permitting CMVP to begin accepting validation submissions under the new scheme beginning September 2020. The CMVP continues to validate cryptographic modules to Federal Information Processing Standard (FIPS) 140-2 Security Requirements for Cryptographic Modules until September 22, 2021.

    Status of FIPS 140-2

    FIPS 140-2 modules can remain active for 5 years after validation or until September 21, 2026, when the FIPS 140-2 validations will be moved to the historical list.  Even on the historical list, CMVP supports the purchase and use of these modules for existing systems. CMVP recommends purchasers consider all modules that appear on the Validated Modules Search Page and meet their requirements for the best selection of cryptographic modules, regardless of whether the modules are validated against FIPS 140-2 or FIPS 140-3.

    Transition schedule from FIPS 140-2 to FIPS 140-3

    The time of the transition is shown below:
    Date Activity
    March 22, 2019 FIPS 140-3 Approved
    September 22, 2019 FIPS 140-3 Effective Date Drafts of SP 800-140x (Public comment closed 12-9-2019)
    March 20, 2020 Publication of SP 800-140x documents
    May 20, 2020 Updated CMVP Program Management Manual for FIPS 140-2
    July 1, 2020 Tester competency exam updated to include FIPS 140-3
    September 21, 2020 FIPS 140-3 Implementation Guidance CMVP Management Manual for FIPS 140-3
    September 22, 2020 CMVP accepts FIPS 140-3 submissions
    September 21, 2021 CMVP stops accepting FIPS 140-2 submissions for new validation certificates
    September 21, 2026 Remaining FIPS 140-2 certificates are moved to the Historical List
    Table: Transition schedule

    FIPS 140-3 approved Cryptographic Algorithms:

    When we say FIPS Approved algorithm, it generally refers to an algorithm or technique that is either specified in a FIPS or NIST recommendation or adopted in a FIPS or NIST recommendation (specified in an appendix or in a document referenced by the FIPS or NIST recommendation).

    Block Cipher Algorithms:

    Several block cipher algorithms have been specified for use by the Federal Government. The approval status of the block cipher encryption/decryption modes of operation are provided in the below table:
    Algorithm Status
    Two-key TDEA Encryption Disallowed
    Two-key TDEA Decryption Legacy use
    Three-key TDEA Encryption Deprecated through 2023 Disallowed after 2023
    Three-key TDEA Decryption Legacy use
    SKIPJACK Encryption Disallowed
    SKIPJACK Decryption Legacy use
    AES-128 Encryption and Decryption Acceptable
    AES-192 Encryption and Decryption Acceptable
    AES-256 Encryption and Decryption Acceptable

    Table: Approval Status of Symmetric Algorithms Used for Encryption and Decryption

    Digital Signatures:

    Digital signatures are used to provide assurance of origin authentication and data integrity. DSA, ECDSA and RSA are allowed, but only with certain parameters. The transition guidance gives a handy summary, shown below:
    Digital Signature Process Domain Parameters Status
    Digital Signature Generation
    <112 bits of security strength: DSA: (L, N) ≠ (2048, 224), (2048,256) or (3072, 256) ECDSA: len(n) < 224 RSA: len(n) < 2048 Disallowed
    ≥ 112 bits of security strength: DSA: (L, N) = (2048, 224), (2048,256) or (3072, 256) ECDSA or EdDSA: len(n) ≥ 224 RSA: len(n) ≥ 2048 Acceptable
    Digital Signature Verification
    < 112 bits of security strength: DSA32: ((512 ≤ L < 2048) or (160 ≤ N < 224)) ECDSA: 160 ≤ len(n) < 224 RSA: 1024 ≤ len(n) < 2048 Legacy use
    ≥ 112 bits of security strength: DSA: (L, N) = (2048, 224), (2048,256) or (3072, 256) ECDSA and EdDSA: len(n) ≥ 224 RSA: len(n) ≥ 2048 Acceptable

    Hash Functions:

    A hash function takes a group of characters (called a key) and maps it to a value of a certain length (called a hash value or hash). The hash value is representative of the original string of characters but is normally smaller than the original.
    A hash function is used to produce a condensed representation of its input, taking an input of arbitrary length and outputting a value with a predetermined length. Hash functions are used in the generation and verification of digital signatures, for key derivation, for random number generation, in the computation of message authentication codes, and for hash-only applications.
    The Transition guidelines document summarizes when SHA-1, SHA-2 etc. can be used.
    Hash Function Use Status
    SHA-1
    Digital signature generation Disallowed, except where specifically allowed by NIST protocol-specific guidance
    Digital signature verification Legacy use
    Non-digital signature applications Acceptable
    SHA-2 family (SHA224, SHA-256, SHA-384, SHA-512, SHA-512/224 and SHA-512/256) Acceptable for all hash function applications
    SHA-3 family(SHA3-224, SHA3- 256, SHA3-384, and SHA3-512) Acceptable for all hash function applications
    TupleHash and ParallelHash Acceptable for the purposes specified in SP 800-185
    Table: Approval Status of Hash Functions

    FIPS 140-2 Vs. FIPS 140-3

    Specifications FIPS 140-2 FIPS 140-3
    Cryptographic Module The FIPS 140-2 standard (issued 2001) was written with the idea that all modules were hardware modules. Later different types of modules (hybrid, software and firmware) were added and defined in the IG (IGs 1.9, 1.16 and 1.17). FIPS 140-3 will include the hardware module, firmware module, software module, hybrid-software module, and hybrid-firmware module
    Cryptographic Boundary FIPS 140-2 IG 1.9 restricted hybrid modules to a FIPS 140-2 Level 1 validation There is also no restriction as to the level at which a hybrid module may be validated in the new standard.
    Roles The FIPS 140-2 standard (section 4.3.1), requires that a module support both a crypto officer role, and a user role, and the support of a maintenance role was optional. FIPS 140-3 still has these same three roles, but only the crypto officer role is required (section 7.4.2). The user role and the maintenance role are now optional.
    Authentication ISO 19790: Level 1 -no authentication requirements Level 2 – minimum role-based authentication Level 3 – identity-based authentication ISO 19790: FIPS 140-3 is similar to FIPS 140-2 for authentication at security levels 1-3. Level 4 is also added in FIPS 140-3, For level 4 authentication, it must be multi-factor identity based.
    Table: Approval Status of Symmetric Algorithms Used for Encryption and Decryption

    Summary:

    FIPS 140-3 has been finally approved and launched as the latest standard for the security evaluation of cryptographic modules. It covers a large spectrum of threats and vulnerabilities as it defines the security requirements starting from the initial design phase leading towards the final operational deployment of a cryptographic module. FIPS 140-3 requirements are primarily based on the two previously existing international standards ISO/IEC 19790:2012 “Security Requirements for Cryptographic Modules” and ISO 24759:2017 “Test Requirements for Cryptographic Modules”.

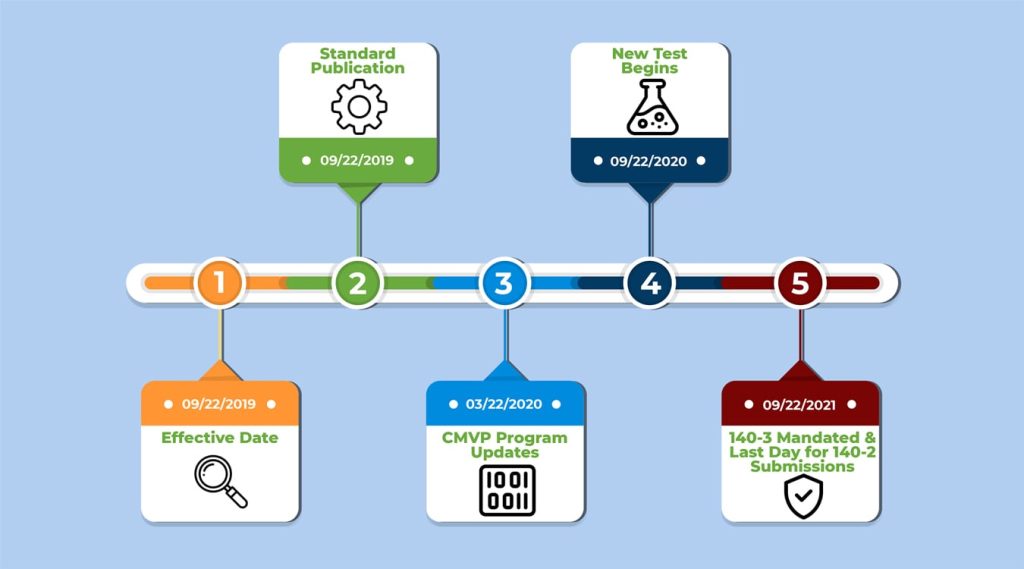

    FIPS 140-3 Timelines:

    Timeline Diagram - FIPS 140-3
    The Timeline: FIPS 140-3 Timelines:
