Oracle Renewal Agent Integration Guide

Prerequisites

To get the Oracle Renewal Agent working smoothly with your deployed instance of CertSecure Manager, you’ll need a few key things.

  1. Administrative privileges

    You must be logged in as a local administrator on the target machine where you want to install the agent.

  2. Oracle Database Account with Required Permissions

    To set up the renewal agent, you also need an Oracle Server instance configured and running with appropriate permissions.

  3. Connectivity

    CertSecure Manager must be accessible from the machine running Oracle Database. To validate, try visiting https://your-certsecure-backend-url/check using a browser.

    You must also be able to connect to your Oracle Database instance from the target machine; therefore, ensure that port 1521 (or your configured port) is open and accessible.

Installation

After confirming the prerequisites, you can set up the renewal agent using the installer.

Configuration and Installation

Run the Renewal agent installer as an administrator and choose the Oracle renewal agent for installation.

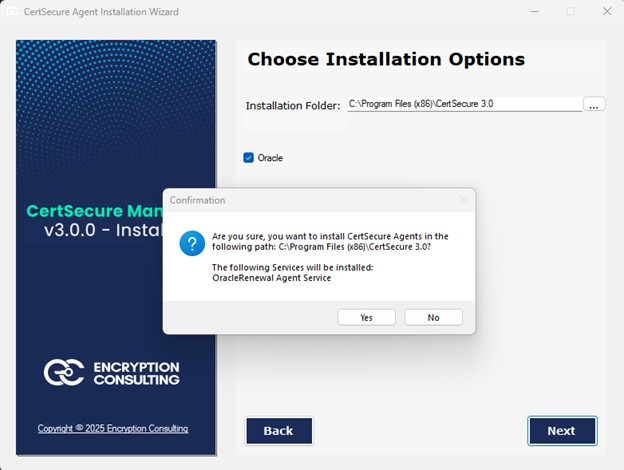

Agent Installer

Steps:

  1. Mention the required details
    • Provide a unique name for the agent.
    • Provide the desired SSL certificate binding name for Oracle Wallet/SSL configuration.
    • Provide the hostname/IP address of your Oracle Database server.
    • Specify the Oracle SID or Service Name.

    • Provide the URL for your CertSecure Manager backend.

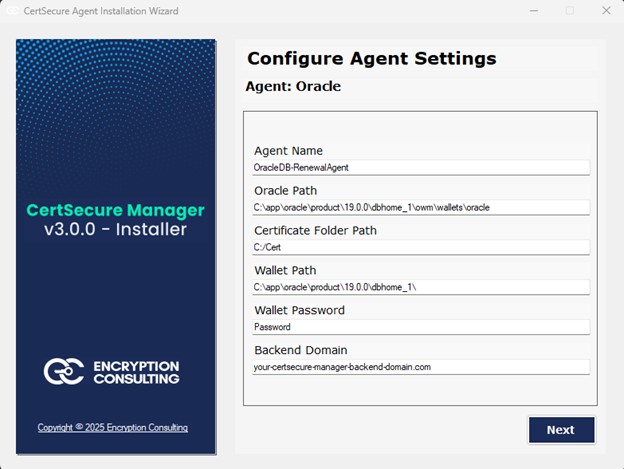

      Agent Configuration
  2. Register and run the agent
    • On the CertSecure Manager UI, go to Utilities ➡ Agents and then click on Create Registration token.
    • Provide the registration token when the installer prompts to do so.

    • Wait for the installer to finalize the installation and then close the installation.

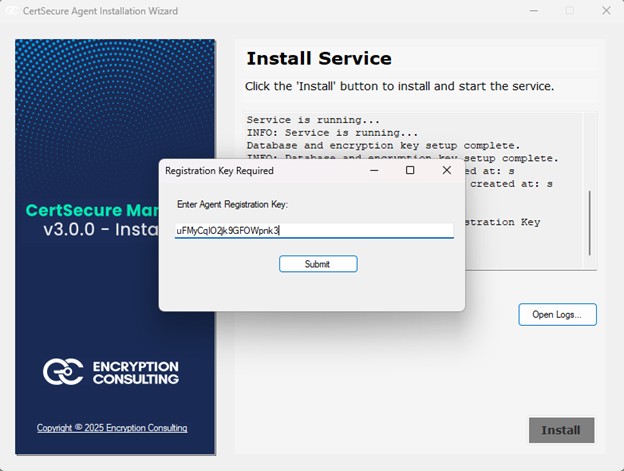

      Registration key

Validation

After the installation has finished, you can validate the installation by following these steps:

  • On the CertSecure Manager UI, go to Utilities ➡ Agents. You can see a renewal agent with the name provided during installation.
  • On the target machine, run services.msc and look for EC_Oracle_Renewal_Agent, you can monitor and manage the renewal agent from here.

  • You can also monitor the agent logs by accessing the log file at C:/CertSecure/logs/oracle_agent.log.

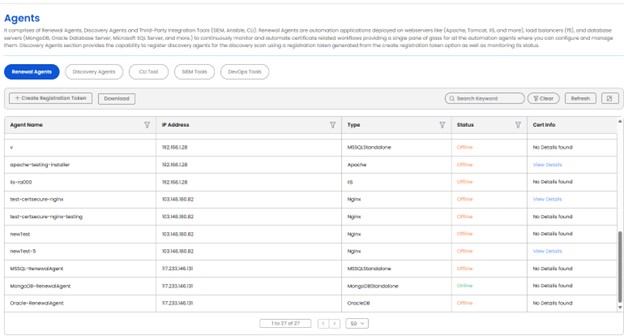

    Certsecure agent route

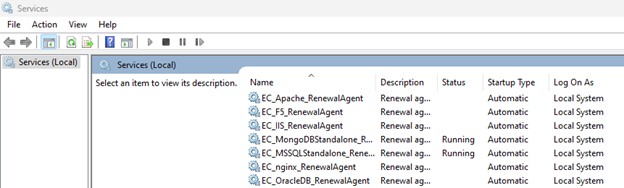

    Agent service
